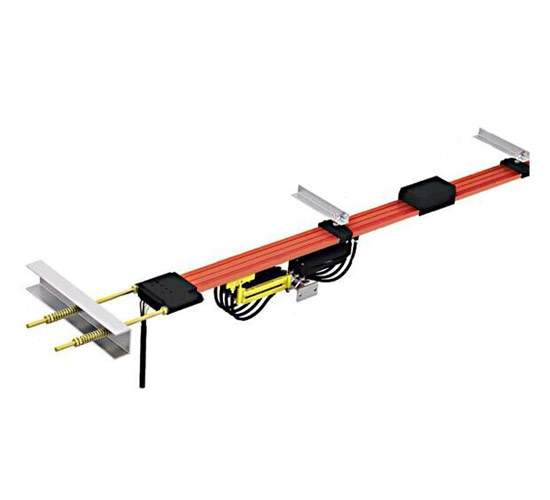

Safety Sliding Contactor Line

ALLMAN safety sliding conductor line is a new type of industrial mobile power feeding system . It can be 3, 4 , 6poles with current capacity from 50A to 140A .

Main features of ALLMAN safety sliding conductor line :
1)Safe , Stable , Seamless .
2)Light weight , Simple structure , Easy for transportation and installation .
3)Copper contact closely with insulated sleeve , no bad contact due to vibration .
4)Insulated material is special formula PVC , which is impact resistant , UV resistant .
5)Suitable for various kinds of curve runway ( Curve R.≥0.6m)


Poles : 3P/4P/6P
Max. Current : 140A
Max. Voltage : 600V

Material :

Conductor bar : copper
Insulation : PVC ( heat resistance : 75 ℃)
Sparts : Plastic / Galvanized steel
