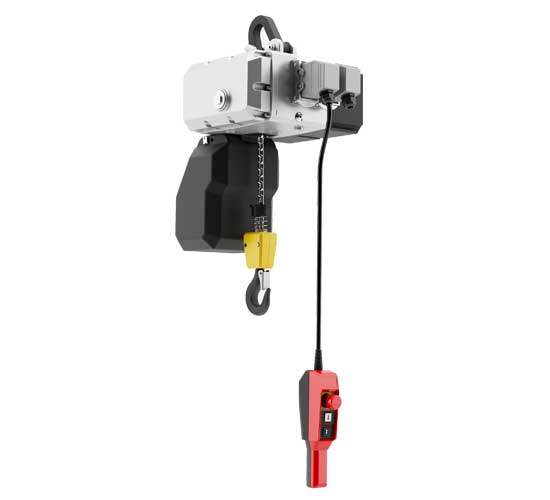

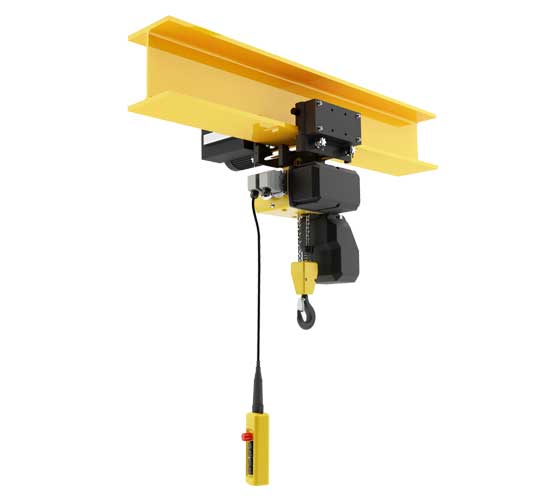

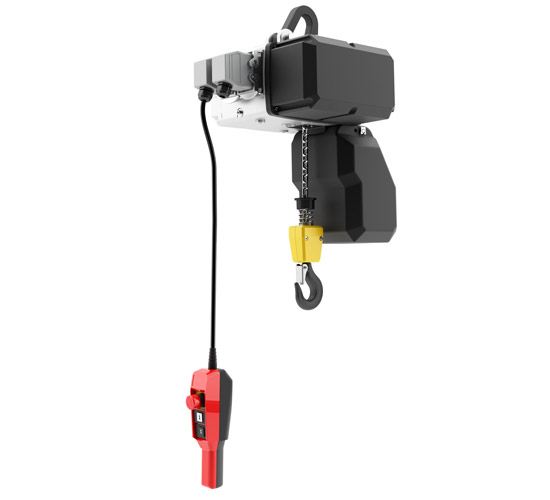

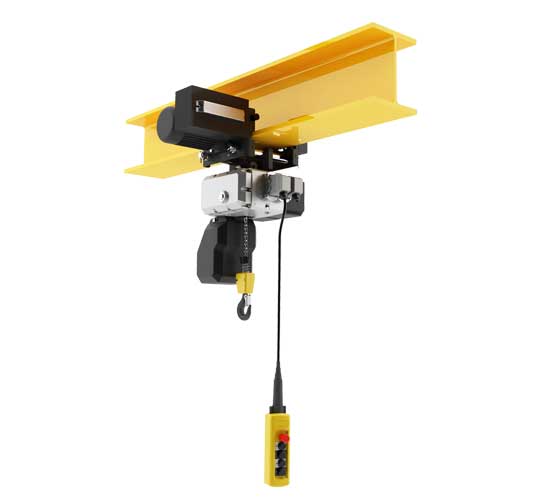

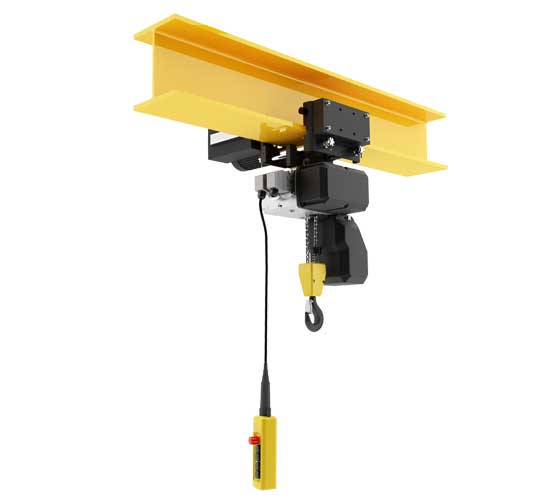

ALLMAN European model , which is a brand -new
hoist with compact structure and reliable performance . This new model
electric chain hoists are designed and manufactured in strict compliance
with FEM and DIN standard , meanwhile , it meet standards and industry codes
of special equipment of Chinese crane industry . The modular design allows
flexible product mix for different lifting tonnage , speed and working level
to meet customers’ individual demands . The core driving components require
no replacement within the safety utilization period ( 10 years) . Standard
and personalized design improves operational performance while substantially
reducing maintenance costs .
Main features of European model
electric chain hoist :
1)High performance
2)Design built
-in
3)Plug and play
4)Long service life
5)Economical and
ergonomic
6)Comfortable operation
7)Easy maintenance
Main configuration of ALLMAN European electric chain hoist
:
1)Brake : Electromagnetic disc brake is integrated at the end of
lifting motor with the brake torque of 2 times of rating .
2)Electric
connectors : Standard connectors of aluminum alloy are used as electrical
interface , safe and convenient .
3)Lifting motor : Dual -speed motor
with cylindrical rotor , reliable and low noise . Standard insulation class
F , protection grade IP55 .
4)Chain Guide : Chain guide is divided as
two parts . The upper part is made of engineering plastic and the lower of
ductile iron .
5)Safety clutch : Safety clutch is integrated in the
driving gear shaft , serving as an overload protection . Set and keep the
torque 1.4times of safe load .
6)Rotating mechanism : Three stage gear
device with tooth surface of each gear hardened and ground , smooth running
, low noise .
7)Housing : Aluminum alloy shell , light weight ,
corrosion resistance and excellent heat dissipation .
8)Chain :
High-strength carburized chain , zinc plated , safe and durable .
9)Hand switch : IP65 Protection grade , imported directly from
Europe , made in France .
